E系列-C2406
發(fā)布日期：2024-01-09 瀏覽次數(shù)：777

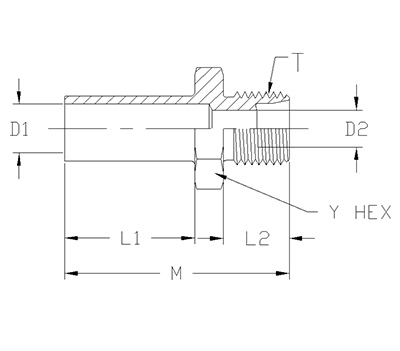

| ITEM | P/N | Y HEX | M | D1 | T | D2 |
| 1 | C2406-06-04-FG | 0.500 | 1.61 | 0.250 | 7/16-20 UNF | 0.203 |
| 2 | C2406-08-04-FG | 0.562 | 1.73 | 0.375 | 7/16-20 UNF | 0.203 |
| 3 | C2406-08-06-FG | 0.625 | 1.77 | 0.375 | 9/16-18 UNF | 0.281 |
| 4 | C2406-12-08-FG | 0.812 | 2.03 | 0.625 | 3/4-16 UNF | 0.422 |
| 5 | C2406-16-12-FG | 1.125 | 2.24 | 0.844 | 1-1/16-12 UN | 0.656 |
